MacMaxe ULKA Model E Type EFP5 - Replacement Pump Compatible with Breville Espresso Machine - Solenoid Vibratory Water Pump with 2 O-Ring Seals - 15 Bar Max Pressure, 2/1 Min. On/Off, 120V, 60Hz, 52W
Brand: MacMaxe
Features:
- Revitalize Your Espresso Machine - This coffee machine pump is designed as a replacement for pumps in tank-filled machines. Installation is easy and can be completed in less than an hour.
- The Right Pressure For Flavorful Brews - This ULKA water pump for espresso machines is self-priming at 0 bar and has a 15 bar max pressure, which is more than enough to create rich, aromatic brews.
- Brew Fresh Coffee For Years - High-quality materials and excellent manufacturing give this coffee maker pump exceptional durability. You'll be making cup after cup of great espresso for a long while.

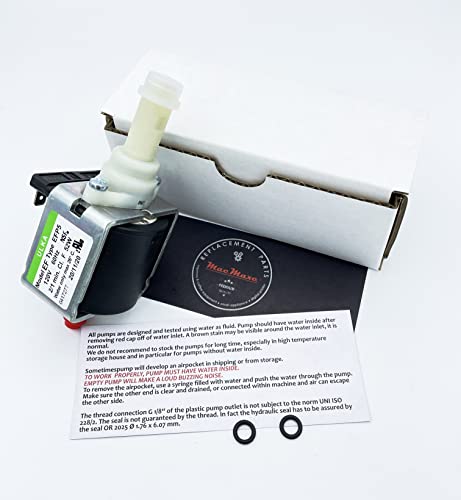

- Tight Seals - This replacement solenoid pump comes with 2 O-rings to help you create a no-leak seal once installed. Please note that only O-rings are included in the package; a connector is not.
- Perfect For Home Espresso Machines- Designed for high pressure and low flow applications, this pump is compatible with Breville 800ESXL, BES820XL, BES830XL, BES840XL, BES860XL, BES870XL, BES900XL, BES920XL, BES980XL, BES990, BES500, BES878, and more.

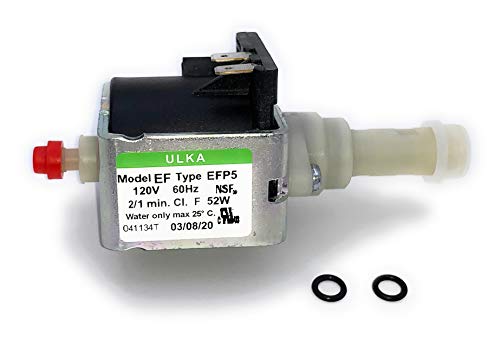

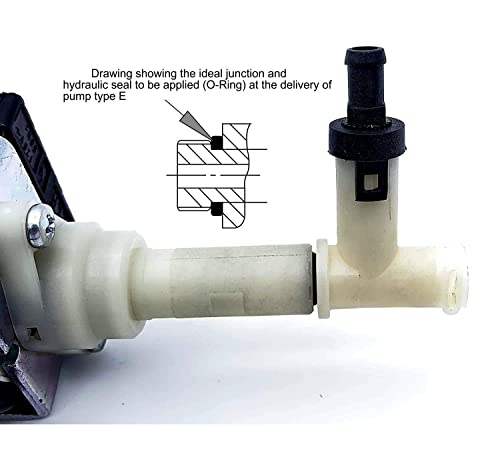

Details: Model E, Type EFP5, ~ 120V, 60Hz 52W.fittings ø 1/8"- ø 6 mm;pressure max 15 bar;water temperature max 25°C;integrated diode (1N 4007P);lead connector 6.3x0.8 mm;All pumps are designed and tested using water as fluid.Pump should have water inside after removing red cap off of water inlet.A brown stain may be visible around the water inlet, it is normal.We do not recommend to stock the pumps for long time,especially in high temperature storage house and in particularfor pumps without water inside.Sometimes pumps will develop an airpocket in shipping or from storage.TO WORK PROPERLY, PUMP MUST HAVE WATER INSIDE . EMPTY PUMP WILL MAKE A LOUD BUZZING NOISE.To remove the airpocket, use a syringe filled with water and pushthe water through the pump. Make sure the other end is clear and drained,or connected within machine and air can escape the other side.The thread connection G 1/8“ of the plastic pump outlet is not subjectto the norm UNI ISO 228/2. The seal is not guaranteed by the thread.In fact the hydraulic seal has to be assuredby the seal OR 2025 Ø 1.76 x 6.07 mm. (Seal include in the package)Replacement Pump for Breville Espresso Machine: 800ESXLBES820XLBES830XLBES840XLBES860XLBES870XLBES900XLBES920XLBES980XLBES990BES500BES878
Package Dimensions: 7.1 x 3.3 x 2.5 inches
model number: EFP5
